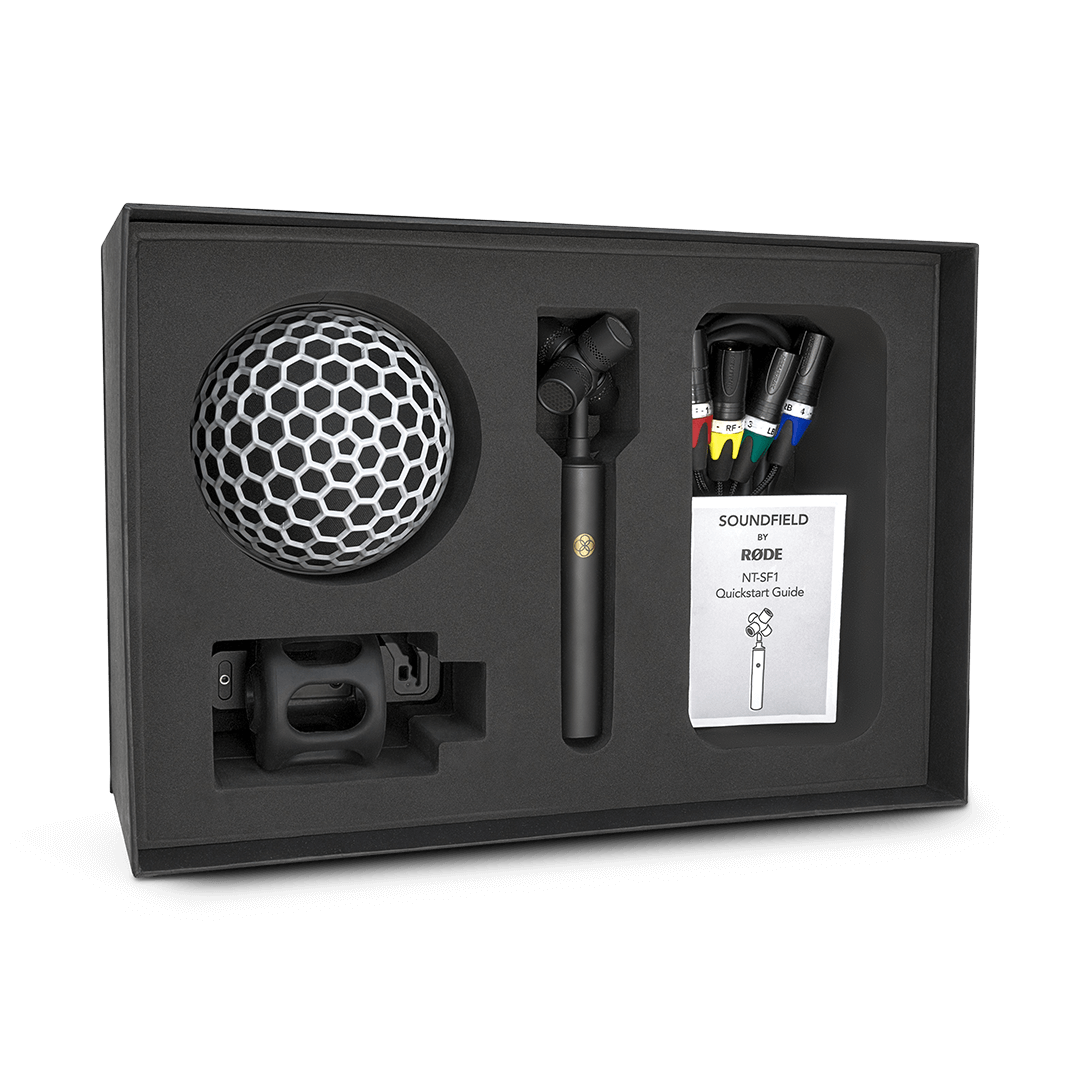

The 'SoundField by RØDE' NT-SF1 is a peerless ambisonic microphone that captures broadcast-quality 360° surround sound, offering unprecedented sonic possibilities for use in VR, sound design, immersive audio, and experimental recording applications
The NT-SF1 is the first collaboration between ambisonic pioneers SoundField (who invented the first commercial ambisonic microphone) and RØDE
Key Features
Captures broadcast-quality 360° surround sound (with height) in A-Format™ on four separate tracks

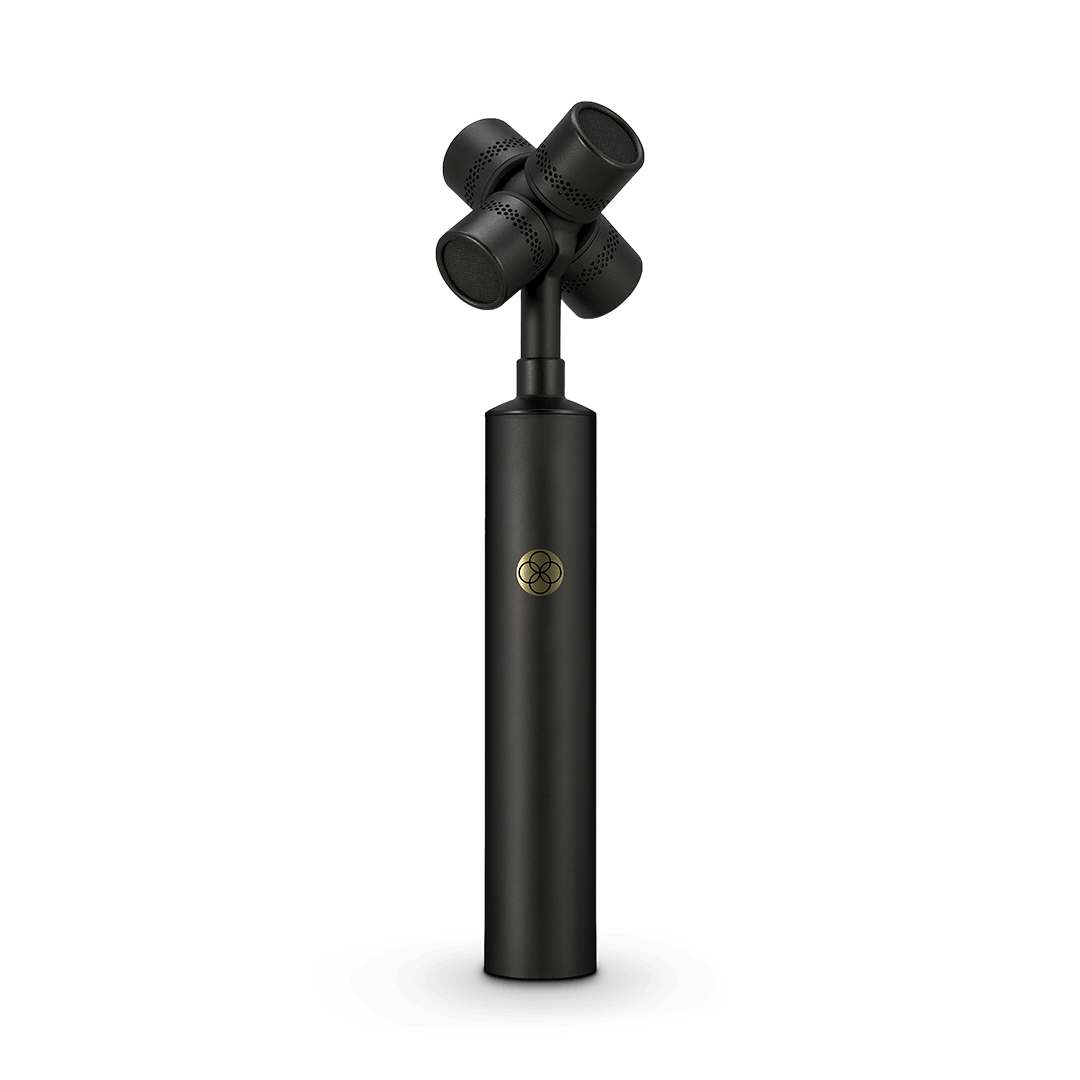

Four RØDE TF-45C ½-inch true-condenser cardioid microphone capsules arranged in a tetrahedral array
Endless processing possibilities via the free 'SoundField by RØDE' plug-in
Output to all formats, from stereo to 7,1,4 surround sound
The NT-SF1 is the first collaboration between ambisonic pioneers SoundField (who invented the first commercial ambisonic microphone) and RØDE
Key Features
Captures broadcast-quality 360° surround sound (with height) in A-Format™ on four separate tracks
Four RØDE TF-45C ½-inch true-condenser cardioid microphone capsules arranged in a tetrahedral array
Endless processing possibilities via the free 'SoundField by RØDE' plug-in
Output to all formats, from stereo to 7,1,4 surround sound
| Brand: | Rode |
| SKU: | NTSF1 |
| Store: | Commertech |
| Dimensions mm: | Length: 192.3 Width: 45.7 Diameter: 25.1 |
| Acoustic Principle: | Externally Biased Condenser |
| Polar Pattern: | Cardioid |
| Active Electronics: | JFET impedance converter with bipolar output buffer |
| Frequency Range: | 20Hz - 20kHz |
| Output Impedance: | 63Ω |
| Equivalent Noise Level (A-Weighted): | 17 dB SPL (as per IEC651) |
| Sensitivity: | -30.4 dB re. 1 Volt/Pascal (30mV @ 94dB SPL, 1kHz) |
| Maximum SPL: | 129 dB SPL |
| Power Requirements: | 6.2mA @ 48V (Per Channel) Phantom Power |
| Signal-to-noise Ratio: | 77 dB |
| Input SPL @ 1% THD: | 129 dB SPL (1kHz @ 1% THD, 600Ω load) |
